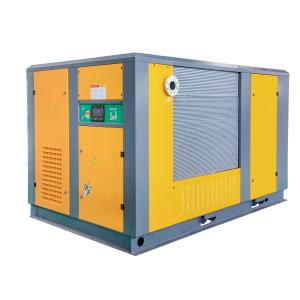

250kw 25bar Medium Pressure Air Compressor for PET Bottle Blowing
High pressure screw air compressors serve a wide range of purposes in industrial, manufacturing and other applications. GooDSeaA has been manufacturing both low and high pressure machines since 2004.
What is Pressure?
Pressure is the amount of force produced by an air compressor, relative to the surrounding atmosphere. For most commercial or industrial applications, it is measured in pounds per square inch gauge (PSIG). You may also see it rated in bar, or bar(g), the metric equivalent of PSIG.
Any machine delivering more than 150 PSIG is generally considered to be a high pressure compressor. Most handheld tools are rated at 90 PSIG, meaning a standard pressure machine can easily power them.
High Pressure Compressor Applications
High pressure screw compressors have a number of very specific uses, particularly in industrial and energy applications. You can find them on offshore drilling rigs and remote pipeline settings, where they are used to start engines and motors, or to help convey drilling mud. They are also used to drive turbines and generators in power plants, and for various processes in manufacturing facilities.
Technical Data
| High Pressure Screw Air Compressor |
| Model | SE250A-25 | Note |
| Free air delivery (m3/min) | 22.0 | 776.6cfm |
| Max working pressure (bar) | 25 | 2.5Mpa |
| Power (kW) | 250 | 340hp |
| Voltage (V/P/Hz) | 380V/3P/50Hz | Voltage can be customized |
| Noise level dB(A) | 82 | |
| Cooling method | Air cooling | water cooling is optional |
| Drive method | Coupling | |
| Motor protection | IP55,F | |
| Suction air temperature (℃) | ≦50 | |
| Outlet temperature (℃) | Ambient Tem. + 8~10℃ | |
| Compressed air control method | Automatic(0-100%) | |
| Control method | PLC Intelligent | English |
| Oil content | 1~3ppm | |
| Connection (mm) | DN 65 | |
| Dimensions (L×W×H) mm | 3250*2250*2050 | |
| Weight (Kg) | 4500 | |
Configuration
More Models
| MODEL | POWER | AIR FLOW m3/min | PRESSSURE bar | OUTLET CONNECTION | WEIGHT kg | DIMENSION L*W*H mm |
| kw | hp |
| SE90W-20 SE90W-25 | 90 | 120 | 9.2 8.5 | 20 25 | DN 40 | 2750 | 2466*1900*1918 |
| SE110W-20 SE110W-25 | 110 | 150 | 11.6 9.7 | 20 25 | DN 40 | 2900 | 2466*1900*1918 |
| SE132W-20 SE132W-25 SE132W-30 | 132 | 180 | 13.0 11.8 10.5 | 20 25 30 | DN 50 | 3200 | 2466*1900*1918 |
| SE160W-20 | 160 | 220 | 15.5 | 25 | DN 50 | 3850 | 2850*1950*1950 |
| SE200W-20 SE200W-25 | 200 | 270 | 21.0 18.8 | 20 25 | DN 65 | 4200 | 2980*2100*1950 |
| SE250W-20 SE250W-25 | 250 | 340 | 25.0 22.0 | 20 25 | DN 65 | 4500 | 3250*2250*2050 |
Note: the above listed are of our standard models. For different needs, the special design service is available. Welcome to pre-sales technical consultation at any time.
